一．数码管简要介绍

数码管分为共阳极数码管和共阴极数码管。共阳数码管是指将所有发光二极管的阳极接到一起形成公共阳极(COM)的数码管，共阳极（COM）需接+5V才能使其工作。共阴数码管是指将所有发光二极管的阴极接到一起形成公共阴极(COM)的数码，共阴极（COM）需接GND才能使其工作。如下图:

下面是数码管的编码：

（1）共阳极数码管：

位选为高电平（即1）选中数码管；

各段选为低电平（即0接地时）选中各数码段；

由0到f编码为:

parameter SEG_NUM0= 8'hc0,

SEG_NUM1= 8'hf9,

SEG_NUM2= 8'ha4,

SEG_NUM3= 8'hb0,

SEG_NUM4= 8'h99,

SEG_NUM5= 8'h92,

SEG_NUM6= 8'h82,

SEG_NUM7= 8'hF8,

SEG_NUM8= 8'h80,

SEG_NUM9= 8'h90,

SEG_NUMA= 8'h88,

SEG_NUMB= 8'h83,

SEG_NUMC= 8'hc6,

SEG_NUMD= 8'ha1,

SEG_NUME= 8'h86,

SEG_NUMF= 8'h8e;

（2）共阴极数码管：

位选为低电平（即0）选中数码管；

各段选为高电平（即1接+5V时）选中各数码段；

由0到f的编码为:

parameter SEG_NUM0= 8'h3f,

SEG_NUM1= 8'h06,

SEG_NUM2= 8'h5b,

SEG_NUM3= 8'h4f,

SEG_NUM4= 8'h66,

SEG_NUM5= 8'h6d,

SEG_NUM6= 8'h7d,

SEG_NUM7= 8'h07,

SEG_NUM8= 8'h7f,

SEG_NUM9= 8'h6f,

SEG_NUMA= 8'h77,

SEG_NUMB= 8'h7c,

SEG_NUMC= 8'h39,

SEG_NUMD= 8'h5e,

SEG_NUME= 8'h79,

SEG_NUMF= 8'h71;

二．74HC595简要介绍

74HC595是8位串行输入/8位串行或并行输出的存储状态寄存器，内部具有有8位移位寄存器和一个存储器，具有三态输出功能，可由SPI接口直接驱动。其引脚图如下：

74HC595控制线主要有SHCP：移位寄存器时钟（上升沿有效）；STCP：存储器时钟（上升沿有效）；DS：串行移位输入；Q7’：串行输出；Q0-Q7：并行输出；OE：使能端（低电平有效）；MR：异步复位端（低电平有效）。

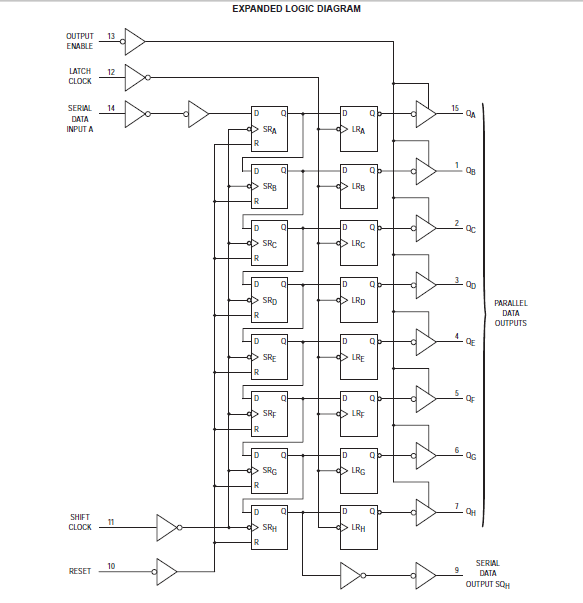

内部逻辑示意图：

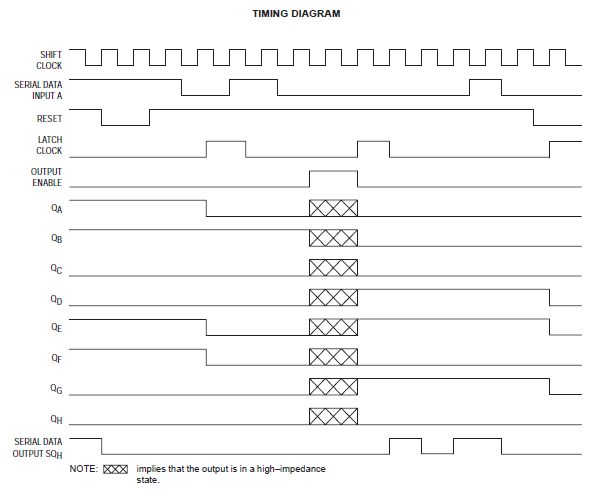

74HC595控制时序图：

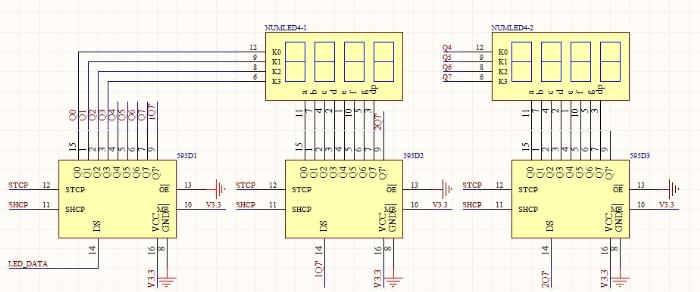

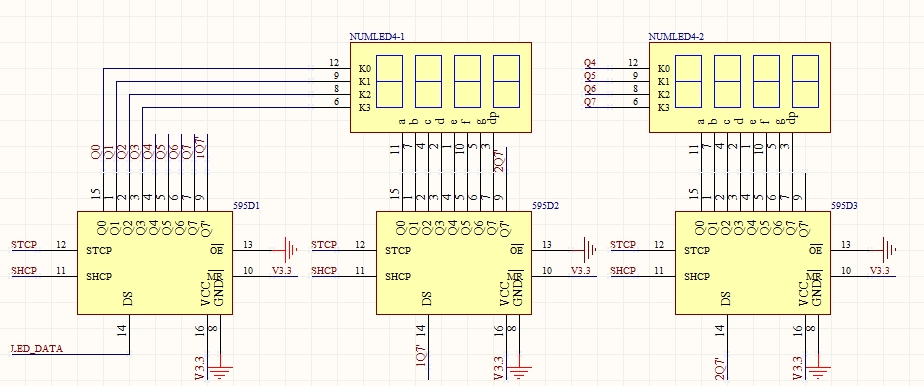

三．74HC595驱动数码管电路图

四．FPGA控制74HC595驱动数码管思路

由FPGA控制74HC595驱动数码管其实主要是抓住74HC595的控制时序，进而输出所需控制显示的内容，由同步状态机实现。

1.首先，要想74HC595工作起来，得有时钟输入。由于74HC595的数据输入是串行输入，所以我们需要产生第一个时钟---串行移位时钟：shcp。根据芯片手册上所写的在VCC=3.0V时的最大时钟频率为15M，因而，在这里我选取shcp = 10M，用简单的计数器对50M全局时钟进行5分频得到。

2.下面到了关键时候了，已经产生shcp串行移位时钟驱动74HC595移位寄存器工作了，但什么时候由FPGA传送数据呢？由于74HC595是在shcp时钟上升沿读取数据，所以为了确保FPGA传送的数据被准确地接收下来，在FPGA里面，我选取shcp时钟的下降沿发送数据。这里可以理解成SPI协议传输，FPGA为主机，74HC595为从机，主机在下降沿发送数据，从机在上升沿读取数据。在代码里，我采用边沿检测技术来捕获shcp时钟的下降沿，这个技术读者需要好好体会把握，很有用处。

3.到了这步，数据已经能正常移位进入74HC595串行移位寄存器了。这里我们要开始思考数码管的问题了，根据上面电路图可以知道，要完全将8位数码管的段选数据和位选数据传给数码管，需要24个状态，即：完成一次数码管的显示驱动需要产生24个shcp时钟。在移位数据完全进入移位寄存器时，产生一个stcp存储器时钟上升沿，把有效数据传入数码管。具体实现方式请参考代码理解。

4.一次数码管的显示驱动已经在前面几步完成了，如果要进行动态显示的话，就需要数码管循环扫描了，每一次扫描，执行位选数据变换，段选数据变换即可。

五．Verilog代码

本代码主要实现了8位数码管集体同步从0-F循环计数，动态显示。

/*************************************************************** **************name: seg_595************ *********author: zzuxzt********* **************time: 2014.5.21*************** ***************************************************************/ module seg_595(input clk, input rst_n, output shcp, //shift clk output stcp, //latch clk output seg_data); /********************Common code****************/ //------------duan xuan------------------------ parameter SEG_NUM0 = 8'h3f,//c0, SEG_NUM1 = 8'h06,//f9, SEG_NUM2 = 8'h5b,//a4, SEG_NUM3 = 8'h4f,//b0, SEG_NUM4 = 8'h66,//99, SEG_NUM5 = 8'h6d,//92, SEG_NUM6 = 8'h7d,//82, SEG_NUM7 = 8'h07,//F8, SEG_NUM8 = 8'h7f,//80, SEG_NUM9 = 8'h6f,//90, SEG_NUMA = 8'h77,//88, SEG_NUMB = 8'h7c,//83, SEG_NUMC = 8'h39,//c6, SEG_NUMD = 8'h5e,//a1, SEG_NUME = 8'h79,//86, SEG_NUMF = 8'h71;//8e; //--------------wei xuan---------------------- parameter wei_all = 8'b0000_0000; /****************************seg display data**********************************/ //---------------------data conventer---------------------------- reg [7:0] seg_num; wire [7:0] wei_data; assign wei_data = wei_all; always@(posedge clk or negedge rst_n) begin if(!rst_n) begin seg_num <= 1'b0; end else begin case(data) 8'h0: seg_num <= SEG_NUM0; 8'h1: seg_num <= SEG_NUM1; 8'h2: seg_num <= SEG_NUM2; 8'h3: seg_num <= SEG_NUM3; 8'h4: seg_num <= SEG_NUM4; 8'h5: seg_num <= SEG_NUM5; 8'h6: seg_num <= SEG_NUM6; 8'h7: seg_num <= SEG_NUM7; 8'h8: seg_num <= SEG_NUM8; 8'h9: seg_num <= SEG_NUM9; 8'ha: seg_num <= SEG_NUMA; 8'hb: seg_num <= SEG_NUMB; 8'hc: seg_num <= SEG_NUMC; 8'hd: seg_num <= SEG_NUMD; 8'he: seg_num <= SEG_NUME; 8'hf: seg_num <= SEG_NUMF; default: seg_num <= SEG_NUM0; endcase end end //------------------1s counter----------------------- reg [31:0] cnt; reg [7:0] data; always@(posedge clk or negedge rst_n) begin if(!rst_n) begin cnt <= 1'b0; data <= 1'b0; end else if(cnt==32'd50000000) begin cnt <= 1'b0; if(data==8'hf) data <= 1'b0; else data <= data + 1'b1; end else cnt <= cnt + 1'b1; end /*****************************seg driver*************************************/ //---------------shift clk---------------------- reg [2:0] cnt_st; reg shcp_r; always@(posedge clk or negedge rst_n) begin if(!rst_n) begin cnt_st <= 1'b0; shcp_r <= 1'b1; end else if(cnt_st==3'd4) begin cnt_st <= 3'd0; shcp_r <= ~shcp_r; //10M end else cnt_st <= cnt_st + 1'b1; end //--------------------capture the shift clk trailing edge---------------------- reg shcp_r0,shcp_r1; wire shcp_flag; always@(posedge clk or negedge rst_n) begin if(!rst_n) begin shcp_r0 <= 1'b1; shcp_r1 <= 1'b1; end else begin shcp_r0 <= shcp_r; shcp_r1 <= shcp_r0; end end assign shcp_flag = (~shcp_r0 && shcp_r1) ? 1'b1:1'b0; //shcp_clk negedge //-----------------------------seg display state---------------------------- reg [4:0] state; reg stcp_r; reg seg_data_r; always@(posedge clk or negedge rst_n) begin if(!rst_n) begin state <= 1'b0; stcp_r <= 1'b1; seg_data_r <= 1'b0; end else if(shcp_flag) begin case(state) //--------------------duan xuan-------------------------- 5'd0: begin seg_data_r <= seg_num[7]; stcp_r <= 1'b1; state <= state + 1'b1; end 5'd1: begin seg_data_r <= seg_num[6]; state <= state + 1'b1; end 5'd2: begin seg_data_r <= seg_num[5]; state <= state + 1'b1; end 5'd3: begin seg_data_r <= seg_num[4]; state <= state + 1'b1; end 5'd4: begin seg_data_r <= seg_num[3]; state <= state + 1'b1; end 5'd5: begin seg_data_r <= seg_num[2]; state <= state + 1'b1; end 5'd6: begin seg_data_r <= seg_num[1]; state <= state + 1'b1; end 5'd7: begin seg_data_r <= seg_num[0]; state <= state + 1'b1; end 5'd8: begin seg_data_r <= seg_num[7]; stcp_r <= 1'b1; state <= state + 1'b1; end 5'd9: begin seg_data_r <= seg_num[6]; state <= state + 1'b1; end 5'd10: begin seg_data_r <= seg_num[5]; state <= state + 1'b1; end 5'd11: begin seg_data_r <= seg_num[4]; state <= state + 1'b1; end 5'd12: begin seg_data_r <= seg_num[3]; state <= state + 1'b1; end 5'd13: begin seg_data_r <= seg_num[2]; state <= state + 1'b1; end 5'd14: begin seg_data_r <= seg_num[1]; state <= state + 1'b1; end 5'd15: begin seg_data_r <= seg_num[0]; state <= state + 1'b1; end //-----------------------wei xuan------------------------------ 5'd16: begin seg_data_r <= wei_data[0]; state <= state + 1'b1; end 5'd17: begin seg_data_r <= wei_data[1]; state <= state + 1'b1; end 5'd18: begin seg_data_r <= wei_data[2]; state <= state + 1'b1; end 5'd19: begin seg_data_r <= wei_data[3]; state <= state + 1'b1; end 5'd20: begin seg_data_r <= wei_data[4]; state <= state + 1'b1; end 5'd21: begin seg_data_r <= wei_data[5]; state <= state + 1'b1; end 5'd22: begin seg_data_r <= wei_data[6]; state <= state + 1'b1; end 5'd23: begin seg_data_r <= wei_data[7]; stcp_r <= 1'b0; //latch the all data state <= 1'b0; end default: state <= 5'bxxxxx; endcase end end assign shcp = shcp_r1; //output to drive 74HC595 shift reg assign stcp = stcp_r; //output to drive 74HC595 latch reg assign seg_data = seg_data_r; endmodule

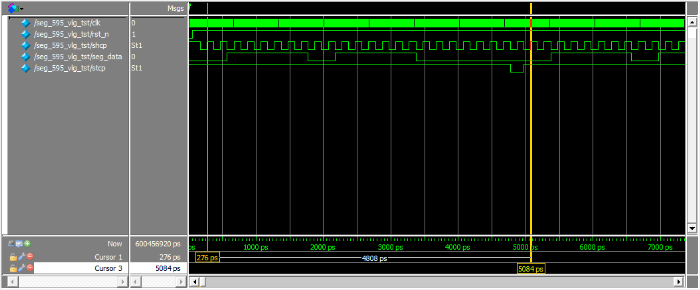

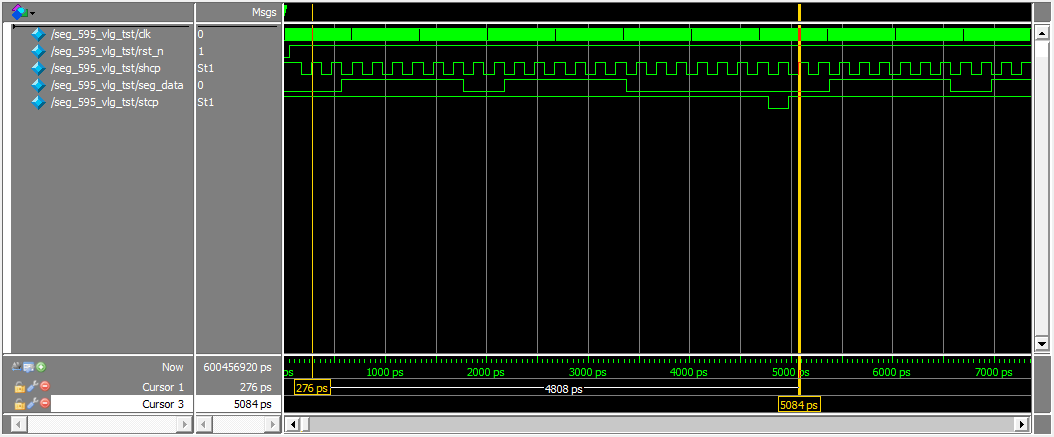

六．Modelsim仿真图
