前几日购买了一款ARM+DSP+FPGA的开发板，由于之前一直做FPGA方向，对ARM也有研究。虽然找的工作是数字IC设计，纯Verilog硬件语言，也不想固步自封，把自己死掉在数字IC中，所以继续往DSP方向钻。（暂时DSP不会淘汰吧）

言归正传吧~~~DSP小白，有些地方不对，望指正！

一、外设初始化

由于硬件的时钟、DDR2的初始化都已经在GEL文件中设定，程序中不比继续做时钟等硬件的初始化，只需要对相关模块使能即可。

PSC是C6748内部的电源管理模块，通过PSCInit()函数可以完成相应功能使能；

void PSCInit(void) { // 使能 GPIO 模块 // 对相应外设模块的使能也可以在 BootLoader 中完成 PSCModuleControl(SOC_PSC_1_REGS, HW_PSC_GPIO, PSC_POWERDOMAIN_ALWAYS_ON, PSC_MDCTL_NEXT_ENABLE); }

SOC_PSC_1_REGS是PSC1的寄存器地址、HW_PSC_GPIO是GPIO使能的偏移。

二、管脚复用配置

void GPIOBank0Pin0PinMuxSetup(void) { unsigned int savePinmux = 0; savePinmux = (HWREG(SOC_SYSCFG_0_REGS + SYSCFG0_PINMUX(1)) & ~(SYSCFG_PINMUX1_PINMUX1_31_28)); HWREG(SOC_SYSCFG_0_REGS + SYSCFG0_PINMUX(1)) = (PINMUX1_GPIO0_0_ENABLE | savePinmux); } HWREG是读取寄存器宏定义；SYSCFG0_PINMUX(x) 是选择复用寄存器x； 分析：savePinmux = (HWREG(SOC_SYSCFG_0_REGS + SYSCFG0_PINMUX(1)) & ~(SYSCFG_PINMUX1_PINMUX1_31_28)); 是对31~28位清零； 分析HWREG(SOC_SYSCFG_0_REGS + SYSCFG0_PINMUX(1)) = (PINMUX1_GPIO0_0_ENABLE | savePinmux); #define PINMUX1_GPIO0_0_ENABLE (SYSCFG_PINMUX1_PINMUX1_31_28_GPIO0_0 << SYSCFG_PINMUX1_PINMUX1_31_28_SHIFT) #define SYSCFG_PINMUX1_PINMUX1_31_28_GPIO0_0 (0x00000008u) #define SYSCFG_PINMUX1_PINMUX1_31_28_SHIFT (0x0000001Cu) 是对31~28位置8h；

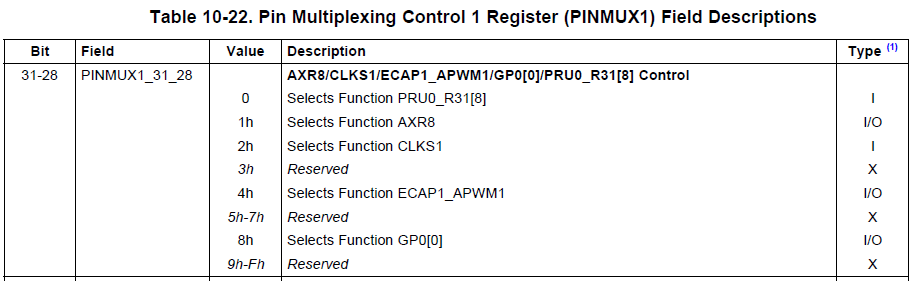

管脚复用PINMUX1寄存器，普通GPIO是8h

三、GPIO管脚初始化

包括对GPIO管脚的方向定义

void GPIOBankPinInit(void) { // 配置 LED 对应管脚为输出管脚 // OMAPL138 及 DSP C6748 共有 144 个 GPIO // 以下为各组 GPIO BANK 起始管脚对应值 // 范围 1-144 // GPIO0[0] 1 // GPIO1[0] 17 // GPIO2[0] 33 // GPIO3[0] 49 // GPIO4[0] 65 // GPIO5[0] 81 // GPIO6[0] 97 // GPIO7[0] 113 // GPIO8[0] 129 // 核心板 LED GPIODirModeSet(SOC_GPIO_0_REGS, 109, GPIO_DIR_OUTPUT); // GPIO6[12] GPIODirModeSet(SOC_GPIO_0_REGS, 110, GPIO_DIR_OUTPUT); // GPIO6[13] // 底板 LED GPIODirModeSet(SOC_GPIO_0_REGS, 1, GPIO_DIR_OUTPUT); // D7 GPIO0[0] GPIODirModeSet(SOC_GPIO_0_REGS, 2, GPIO_DIR_OUTPUT); // D9 GPIO0[1] GPIODirModeSet(SOC_GPIO_0_REGS, 3, GPIO_DIR_OUTPUT); // D10 GPIO0[2] GPIODirModeSet(SOC_GPIO_0_REGS, 6, GPIO_DIR_OUTPUT); // D6 GPIO0[5] } GPIODirModeSet的原型gpio.c文件里面定义，相关输入参数如下

/** * \brief This function configures the direction of a pin as input or output. * * \param baseAdd The memory address of the GPIO instance being used. * \param pinNumber The serial number of the GPIO pin. The 144 GPIO pins have serial numbers from 1 to 144 * \param pinDir The direction to be set for the pin. This can take the values: * 1> GPIO_DIR_INPUT, for configuring the pin as input. * 2> GPIO_DIR_OUTPUT, for configuring the pin as output. * * \return None. * * \note Here we write to the DIRn register. Writing a logic 1 configures * the pin as input and writing logic 0 as output. By default, all * the pins are set as input pins. */ void GPIODirModeSet(unsigned int baseAdd, unsigned int pinNumber, unsigned int pinDir) { unsigned int regNumber = 0; unsigned int pinOffset = 0; /* ** Each register contains settings for each pin of two banks. The 32 bits ** represent 16 pins each from the banks. Thus the register number must be ** calculated based on 32 pins boundary. */ regNumber = (pinNumber - 1)/32; /* ** In every register the least significant bits starts with a GPIO number on ** a boundary of 32. Thus the pin offset must be calculated based on 32 ** pins boundary. Ex: 'pinNumber' of 1 corresponds to bit 0 in ** 'register_name01'. */ pinOffset = (pinNumber - 1) % 32; if(GPIO_DIR_OUTPUT == pinDir) { HWREG(baseAdd + GPIO_DIR(regNumber)) &= ~(1 << pinOffset); } else { HWREG(baseAdd + GPIO_DIR(regNumber)) |= (1 << pinOffset); } } 四、GPIO操作 作为通用的GPIO既可以输出高电平也可以输出低电平。由TL6748底板的原理图可知若想点亮LED需要将控制引脚置高，熄灭LED需要将控 制引脚置低。DSP的GPIO输出的高低电平可以由不同的寄存器控制，也可以使用同一个寄存器来实现。例程中使用了同一个寄存器来控制G PIO输出的状态即：OUT_DATAn寄存器。GP0[0]的输出状态对应OUT_DATA01寄存器的第0位，对该位置1则可以在该管脚上输出高电平，反 之清零该位即可在该脚上输出低电平。 GPIOPinWrite(SOC_GPIO_0_REGS, 1, GPIO_PIN_HIGH); // D7 亮 GPIO0[0] Delay(0x00FFFFFF); GPIOPinWrite(SOC_GPIO_0_REGS, 1, GPIO_PIN_LOW); // D7 灭 GPIO0[0] GPIOPinWrite原型在gpio.c文件定义： * \brief This function writes a logic 1 or a logic 0 to the specified pin. * * \param baseAdd The memory address of the GPIO instance being used. * \param pinNumber The serial number of the GPIO pin. * The 144 GPIO pins have serial numbers from 1 to 144. * * \param bitValue This signifies whether to write a logic 0 or logic 1 * to the specified pin.This variable can take any of the * following two values: * 1> GPIO_PIN_LOW, which indicates to clear(logic 0) the bit. * 2> GPIO_PIN_HIGH, which indicates to set(logic 1) the bit. * * \return None. * * \note The pre-requisite to write to any pin is that the pin has to * be configured as an output pin. */ void GPIOPinWrite(unsigned int baseAdd, unsigned int pinNumber, unsigned int bitValue) { unsigned int regNumber = 0; unsigned int pinOffset = 0; /* ** Each register contains settings for each pin of two banks. The 32 bits ** represent 16 pins each from the banks. Thus the register number must be ** calculated based on 32 pins boundary. */ regNumber = (pinNumber - 1)/32; /* ** In every register the least significant bits starts with a GPIO number on ** a boundary of 32. Thus the pin offset must be calculated based on 32 ** pins boundary. Ex: 'pinNumber' of 1 corresponds to bit 0 in ** 'register_name01'. */ pinOffset = (pinNumber - 1) % 32; if(GPIO_PIN_LOW == bitValue) { HWREG(baseAdd + GPIO_CLR_DATA(regNumber)) = (1 << pinOffset); } else if(GPIO_PIN_HIGH == bitValue) { HWREG(baseAdd + GPIO_SET_DATA(regNumber)) = (1 << pinOffset); } }
