AD9854芯片介绍

0
阅读(2849)

以下可能因个人翻译能力有限会影响阅读

AD9854是CMOS 300 MSPS Quadrature Complete DDS芯片(cmos工艺的可达300M速度的正交DDS芯片),主要特点有:

1.可以实现FSK(频移键控), BPSK(二元相移键控), PSK(相移键控), chirp(脉冲调频), AM(振幅调制) operation;

2.内部有两个12bits的DA转换器,超高速比较器;

3.可达3ps动态误差,在100Mhz情况下,达80dB的SFDR(无杂散动态范围);

4.4× to 20× programmable reference clock multiplier(4倍到20倍的可编程时钟乘法器);

5.Dual 48-bit programmable frequency registers(2个48bits的可编程频率寄存器);

6.Dual 14-bit programmable phase offset registers(两个14bits的可编程相位偏移寄存器);

7.12-bit programmable amplitude modulation and on/off output shaped keying function(一个12bits可编程幅度调制和通断整形按键功能);

8.Single-pin FSK and BPSK data interfaces(单引脚的FSK和BPSK);

9.PSK capability via input/output interface(PSK可由IO脚实现);

10.Linear or nonlinear FM chirp functions with single-pin frequency hold function(带有引脚频率保持功能的线性和非线性的脉冲调频);

11Frequency-ramped FSK(频率自增的FSK);

12.<25 ps rms total jitter in clock generator mode(在时钟发生模式下有小于25ps rms的抖动误差);

13.Automatic bidirectional frequency sweeping(自动的双向扫频);

14.Sin(x)/x correction(Sin(x)/x 校正);

15.Simplified control interfaces

10 MHz serial 2- or 3-wire SPI compatible

100 MHz parallel 8-bit programming

有如下应用场景

1.Agile, quadrature LO frequency synthesis(便携式频率分析);

2.Programmable clock generators(可编程时钟发生器);

3.FM chirp source for radar and scanning systems(应用在雷达和扫频领域的调频信号源);

4.Test and measurement equipment(测试和测量设备);

5.Commercial and amateur RF exciters(商业和普通的射频器)。

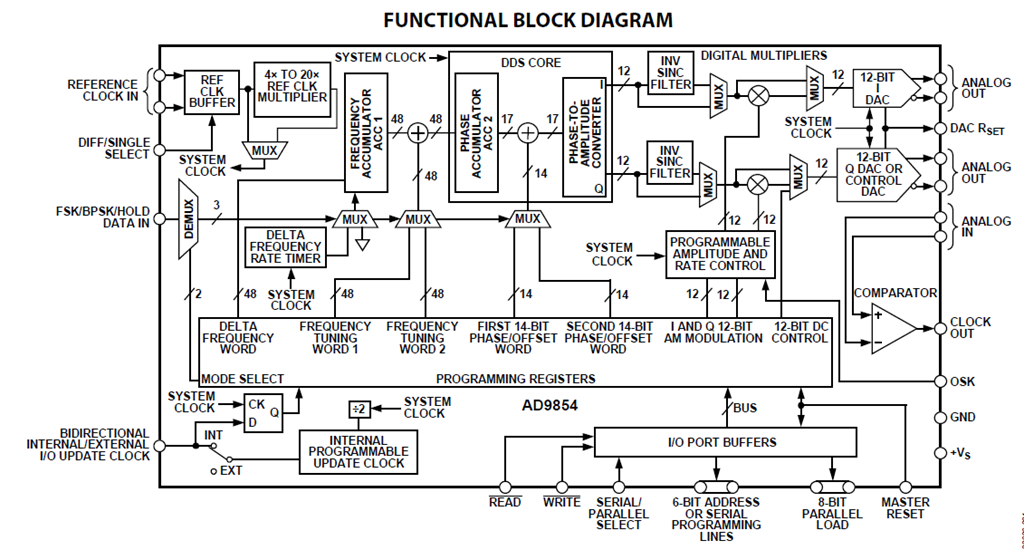

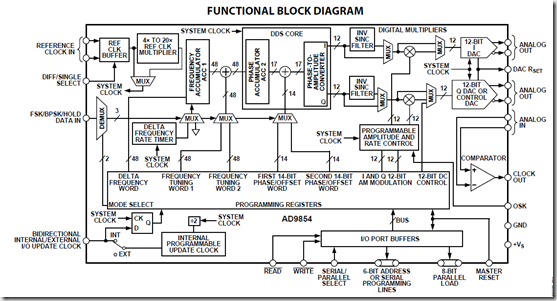

如下是其功能图


从左上开始看,有如下功能入口:

1.输入:reference clock in(参考时钟输入);diff/single select(差分/单端选择);

FSK/BPSK Hold Data In(FSK/BPSK数据保持输入);BIDIRECTIONAL INTERNAL/EXTERNALI/OUPDATECLOCK(双向的内部或外部IO更新时钟输入);

2.输出:ANALOG OUT(模拟输出);clock out(时钟输出);OSK();

OK,那么AD9854到底可以实现具体的什么呢,往下看概述。

When referenced to an accurate clock source, the AD9854 generates highly stable, frequency-phase, amplitude-programmable sine and cosine outputs that can be used as an agile LO in communications, radar, and many other applications.(当参考时钟源非常精准的时候,AD9854可以产生稳定的,频率、相位和幅度可调的sin和cos信号,当然可以应用在便携式频率分析意见和雷达等其他场合)。The innovative high speed DDS core of the AD9854 provides 48-bit frequency resolution (1 μHz tuning resolution with 300 MHz SYSCLK). Maintaining 17 bits ensures excellent SFDR.(得益于内部的高速DDS核,AD9854提供高达1uhz精度的分辨率和保证了17bits的SFDR)。The circuit architecture of the AD9854 allows the generation of simultaneous quadrature output signals at frequencies up to 150 MHz, which can be digitally tuned at a rate of up to 100 million new frequencies per second.(它的电路结构允许其产生高达150M的信号输出和100M的数字调频输出)。The sine wave output (externally filtered) can be converted to a square wave by the internal comparator for agile clock generator applications.(sin信号可以通过比较器转换为方波)。The device provides two 14-bit phase registers and a single pin for BPSK operation.(它提供两个14bits的相位寄存器和一个用作BPSK操作的引脚)。For higher-order PSK operation, the I/O interface can be used for phase changes.(对于更好要求的PSK操作,IO引脚可以用作相位改变功能)。The 12-bit I and Q DACs, coupled with the innovative DDS architecture, provide excellent wideband and narrow-band output SFDR.(12bits的I和Q通道DAC提供高带宽和窄带宽的SFDR)。The Q DAC can also be configuredas a user-programmable control DAC if the quadrature function is not desired. When configured with the comparator, the 12-bit control DAC facilitates static duty cycle control in high speed clock generator applications.(Q通道也可以配置为不使用正交功能,它由用户编程控制DA转换。配置为高速比较器时,12bits的DA可用来做时钟发生器)。Two 12-bit digital multipliers permit programmable amplitude modulation, on/off output shaped keying, and precise amplitude control of the quadrature oChirp functionality is also included to facilitate wide bandwidth frequency sweeping applications.utput.(内部的两个12bits的数字乘法器可以编程为调幅模块,通断按键整形,一个精确可控的方波)。Chirp functionality is also included to facilitate wide bandwidth frequency sweeping applications.(脉冲调制在高宽带扫频领域有重要应用)。The programmable 4× to 20× REFCLK multiplier circuit of the AD9854 internally generates the 300 MHz system clock from an external lower frequency reference clock.This saves the user the expense and difficulty of implementing a 300 MHz system clock source.(可倍频到300Mhz)。Direct 300 MHz clocking is also accommodated with either single-ended or differential inputs.(直接的300M也可以单端或者差分输入)。Single-pin conventional FSK and the enhanced spectral qualities of ramped FSK are supported. The AD9854 uses advanced 0.35 μm CMOS technology to provide a high level of functionality on a single 3.3 V supply.(提供常规的FSK和增强型斜率FSK.)。工作温度在−40°C to +85°C.
