Xilinx AXI4 BRAM controller的应用

软件平台：vivado+sdk

硬件平台：zynq (zedboard)

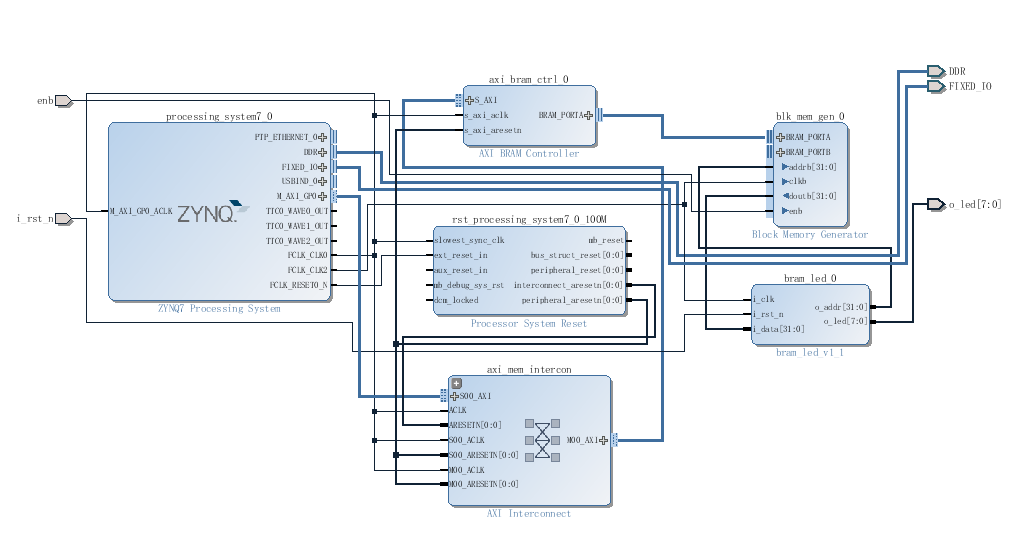

话不多说，先上电路：

这里用到了zynq、Axi BRAM Controller和一个Block RAM.为了在板上验证，右边添加了一个从PortB读并显示在LED灯上的小模块bram_led。

bram_led的代码比较粗糙，具体的分频数可根据fclk_clk2的配置自行确定。这里设置的50M，因此led灯每1s会随读取到的bram内容变化一次。

附bram_led代码：

module bram_led ( i_clk, i_rst_n, i_data, o_addr, o_led ); parameter ADDR_WIDTH = 15; parameter DATA_WIDTH = 32; parameter COUNTER_WIDTH = 26; parameter CLK_COUNTER = 50000000; input wire i_clk; input wire i_rst_n; input wire [DATA_WIDTH - 1 :0] i_data; output reg [ADDR_WIDTH - 1 : 0] o_addr; output reg [7:0] o_led; reg[COUNTER_WIDTH - 1 : 0] count; always@(posedge i_clk or negedge i_rst_n) begin if( !i_rst_n ) begin count <= 26'h0; end else if(count == CLK_COUNTER)begin count <= 26'h0; end else begin count <= count + 4'h4; end end always@(posedge i_clk or negedge i_rst_n) begin if( !i_rst_n ) begin o_addr <= 32'h00; end else if(count == CLK_COUNTER) begin o_addr <= o_addr + 4'd1; end else begin o_addr <= o_addr; end end always@(posedge i_clk or negedge i_rst_n) begin if( !i_rst_n ) begin o_led <= 8'h00; end else if(count == CLK_COUNTER) begin o_led <= i_data; end else begin o_led <= o_led; end end endmodule

AXI互联的逻辑是自动连线得到的。这样就可以通过zynq上的ARM硬核像访问内存一样访问BRAM了。

在address editor中可以配置axi bram controller的地址，这里直接采用默认的。

生成product并且建立hdl wapper之后，把enb直接拉到高电平，表示一直有效。

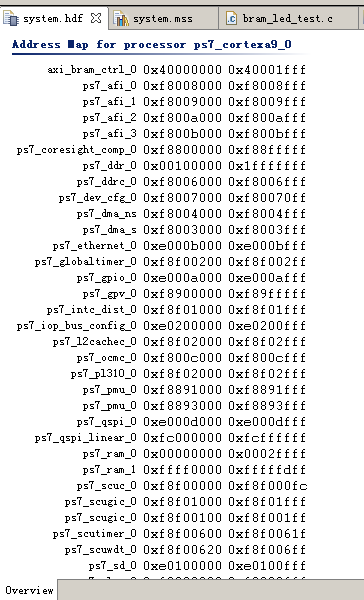

综合，实现，生成bit流并且导出到edk。可以看到我们刚才配置的bram-controller的地址：

建立一个helloword的standalone工程，输入以下初始化RAM的C代码：

/****************************************************************************** * * Copyright (C) 2009 - 2014 Xilinx, Inc. All rights reserved. * * Permission is hereby granted, free of charge, to any person obtaining a copy * of this software and associated documentation files (the "Software"), to deal * in the Software without restriction, including without limitation the rights * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell * copies of the Software, and to permit persons to whom the Software is * furnished to do so, subject to the following conditions: * * The above copyright notice and this permission notice shall be included in * all copies or substantial portions of the Software. * * Use of the Software is limited solely to applications: * (a) running on a Xilinx device, or * (b) that interact with a Xilinx device through a bus or interconnect. * * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL * XILINX BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, * WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF * OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE * SOFTWARE. * * Except as contained in this notice, the name of the Xilinx shall not be used * in advertising or otherwise to promote the sale, use or other dealings in * this Software without prior written authorization from Xilinx. * ******************************************************************************/ /* * helloworld.c: simple test application * * This application configures UART 16550 to baud rate 9600. * PS7 UART (Zynq) is not initialized by this application, since * bootrom/bsp configures it to baud rate 115200 * * ------------------------------------------------ * | UART TYPE BAUD RATE | * ------------------------------------------------ * uartns550 9600 * uartlite Configurable only in HW design * ps7_uart 115200 (configured by bootrom/bsp) */ #include  #include "platform.h" #include "xil_io.h"//包含Xil_Out32函数 #include "sleep.h" //包含sleep函数 #define bram_base_addr 0x40000000 //基地址 int main() { u32 bram_offset_addr = 0x000000; //偏移地址 u32 bram_data = 0x00000001; //写入的数据 u32 data_read = 0; while(1) { while(bram_offset_addr <= 0x1fff) { Xil_Out32(bram_base_addr + bram_offset_addr, bram_data); bram_data = bram_data << 1; if(bram_data == 0x100) { bram_data = 0x00000001; } bram_offset_addr += 0x04; } xil_printf("Write OK. Starting read...\r\n"); bram_offset_addr = 0; while(bram_offset_addr <= 0x1ff) { data_read = Xil_In32(bram_base_addr + bram_offset_addr); //xil_printf("0X%08X\r\n", data_read); bram_offset_addr += 0x04; } while(1); } return 0; }

然后选择tools--program fpga,配置好fpga后，再点击绿色运行按钮(launch on hardware)运行裸机程序。

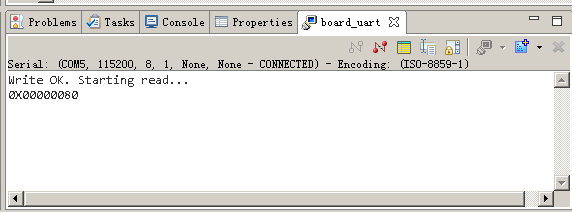

可以在串口看到打印的消息：

如果不出意外的话，就可以看到led闪烁的效果了！

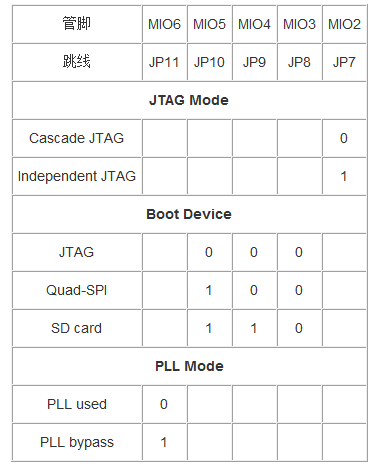

PS：运行裸机程序一定要把板子配置成在线调试模式，zedboard上面的五个调帽全打到0上即可。下面给出具体的配置。
